Components and Components Location: Components

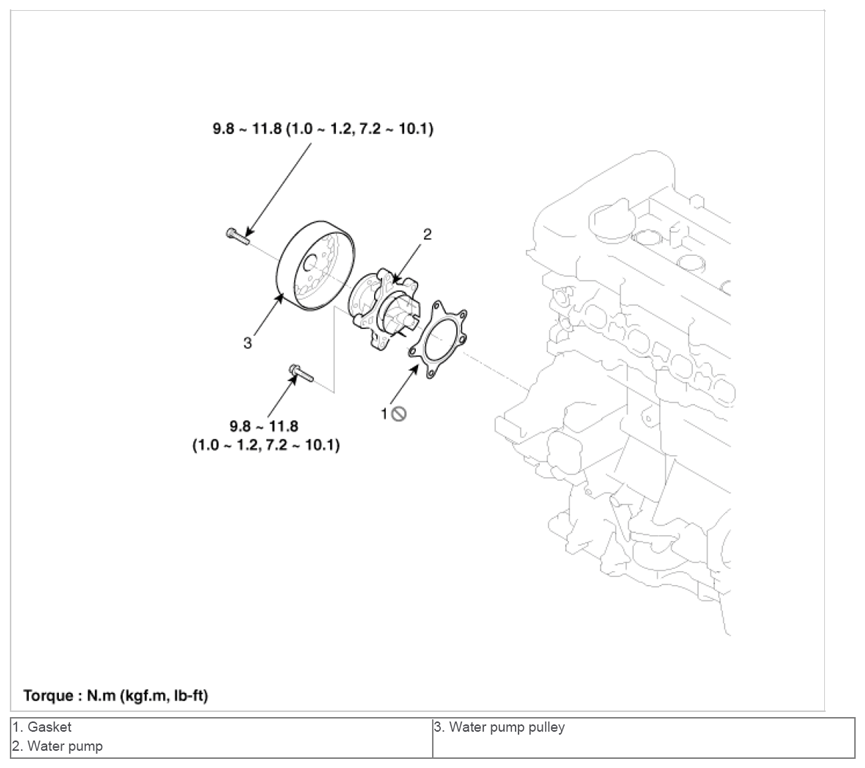

Fig 1: Water Pump Related Components With Torque Specifications

G09150166

Courtesy of HYUNDAI MOTOR AMERICA
