Components and Components Location: Components

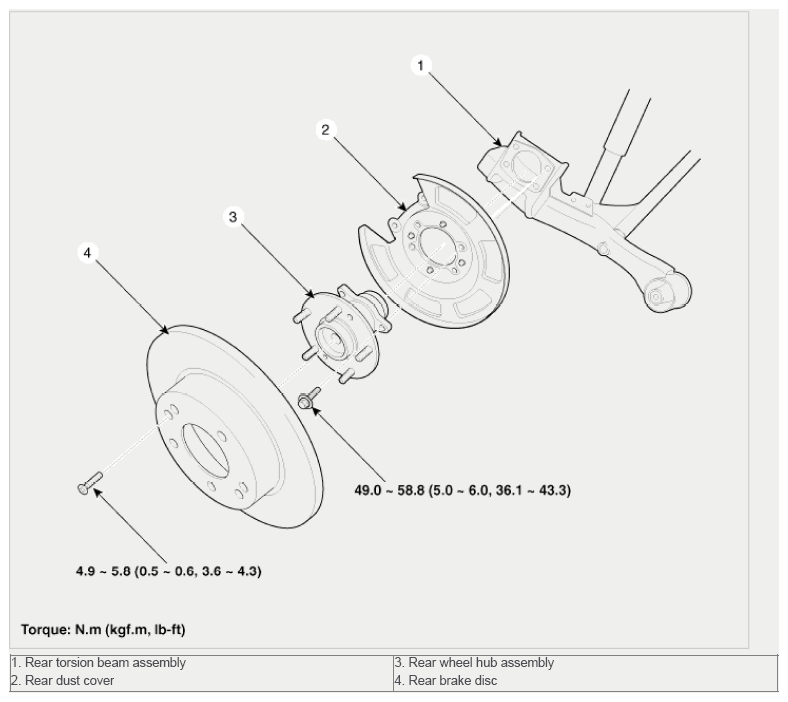

Fig 1: Rear Hub Related Components With Torque Specifications

G09137613

Courtesy of HYUNDAI MOTOR AMERICA
