[Transaxle Components]

WARNING: This page is about a different variant/trim than selected.

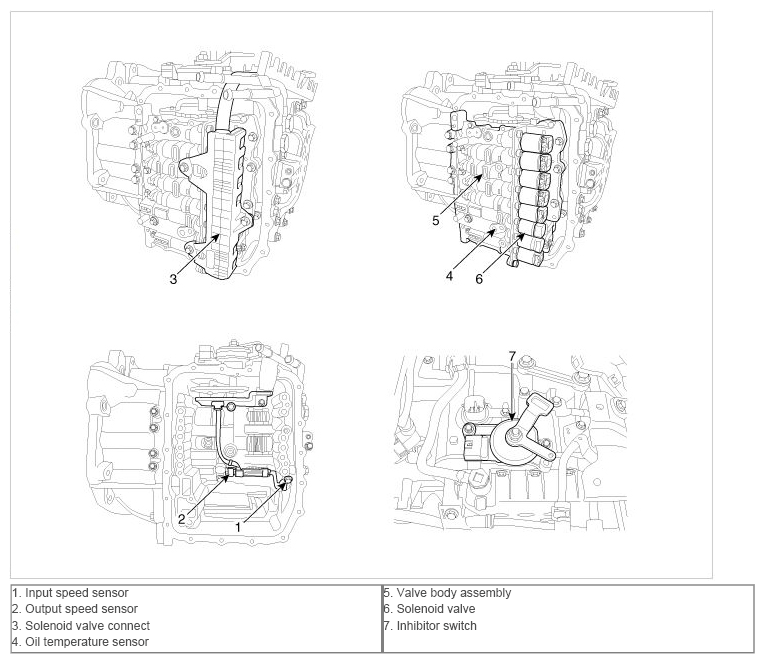

Fig 1: Automatic Transaxle Control System Components Location - 2.0L (Transaxle Components)
G09815337Courtesy of HYUNDAI MOTOR AMERICA
