Repair Procedures: Removal

WARNING: This page is about a different car, the 2013 Hyundai Tucson and 2012 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the lower crash pad.

    (Refer to CRASH PAD .)

  3. Disconnect the stop lamp switch connector (A) and loosen the stop lamp switch lock nut.

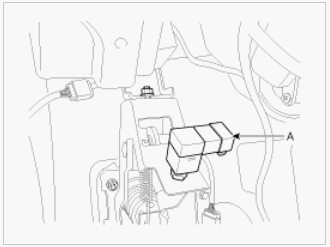

    Fig 1: Identifying Stop Lamp Switch Connector
    G00533788Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the stop lamp switch.
