Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

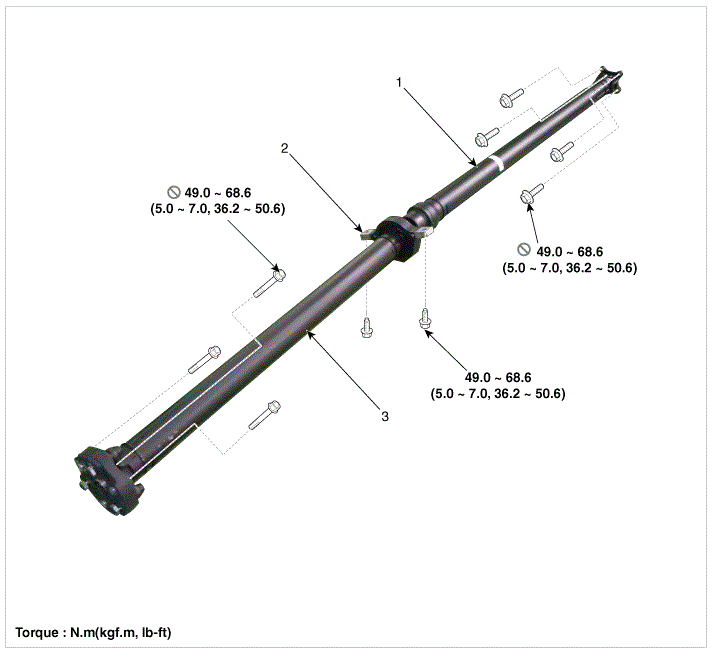

Fig 1: Front And Rear Propeller Shaft And Center Bearing Bracket With Torque Specifications
G00546081Courtesy of HYUNDAI MOTOR AMERICA
