Components and Components Location

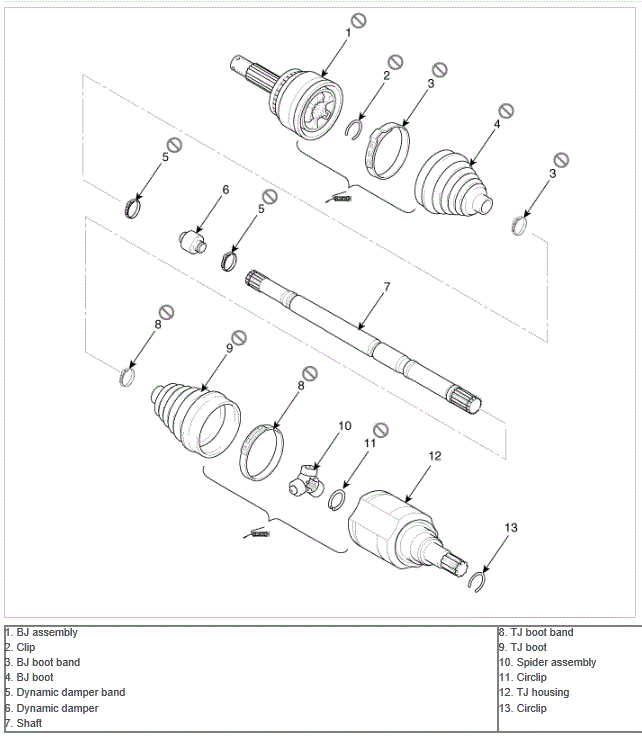

Fig 1: Exploded View Of Front Driveshaft

G00547191

Courtesy of HYUNDAI MOTOR CO.
