Signal Waveform & Data

Fig 1: Display - Normal Waveform Of Wheel Speed Sensor Screen At Idle

Courtesy of HYUNDAI MOTOR AMERICA

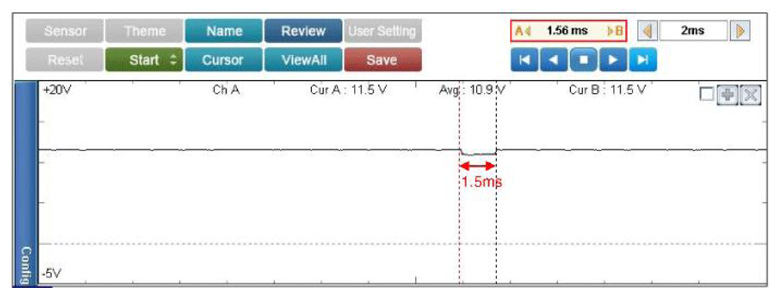

Fig 2: Display - Normal Waveform Of Smart Type Wheel Speed Sensor Screen At Standing Still

Courtesy of HYUNDAI MOTOR AMERICA

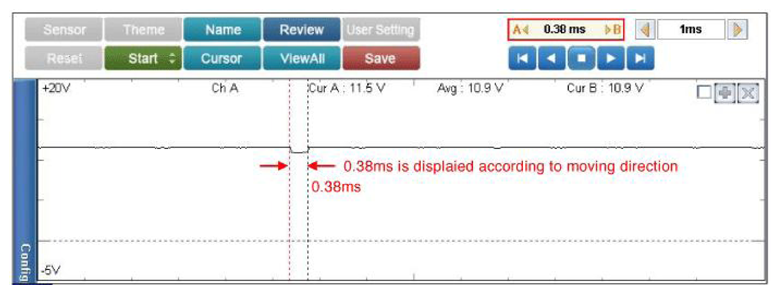

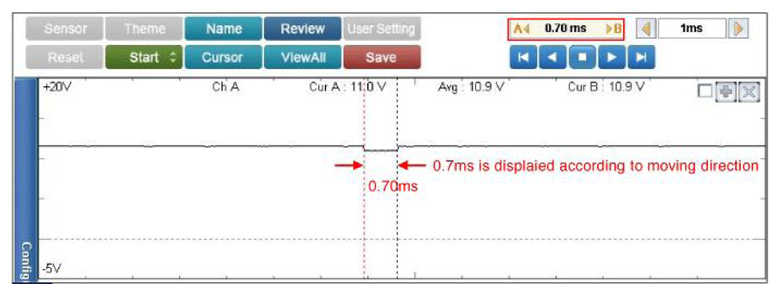

Fig 3: Display - Normal Waveform Of Smart Type Wheel Speed Sensor According To Moving Condition Screen At IG ON

Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Display - Normal Waveform At Power Terminal Of Wheel Speed Sensor With Disconnected Connector Screen At IG ON

Courtesy of HYUNDAI MOTOR AMERICA

High: approx. 13.3V, Low: approx. 12.7V
* Smart type wheel speed sensor is applied to the rear wheel speed sensor of the vehicle equipped SPAS
