Front Cross Member
Front Cross Member

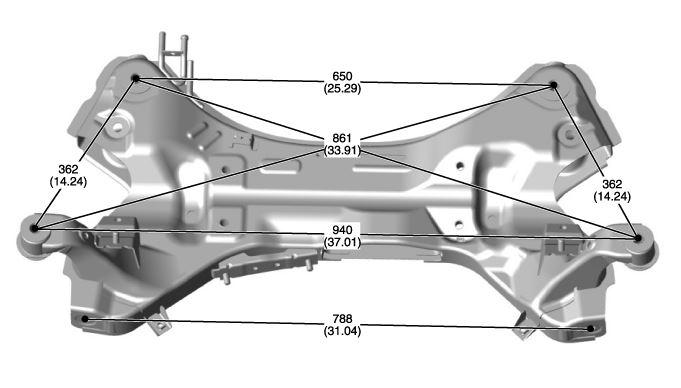

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]
Fig 1: Identifying Front Cross Member Dimensions
Courtesy of HYUNDAI MOTOR CO.
