Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the fuel tank.

    (Refer to "FUEL TANK ")

  3. Remove the fuel tank pressure sensor (A) after releasing the hooks vertically.

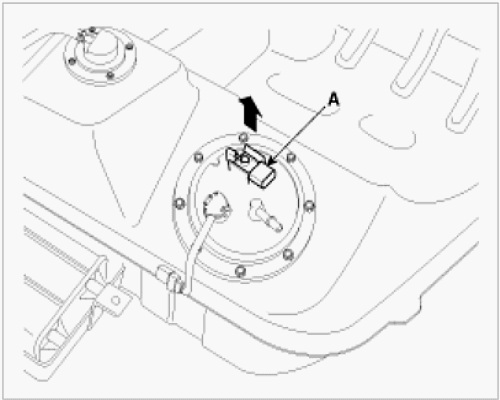

    Fig 1: Identifying Fuel Tank Pressure Sensor
    G00546589Courtesy of HYUNDAI MOTOR CO.
