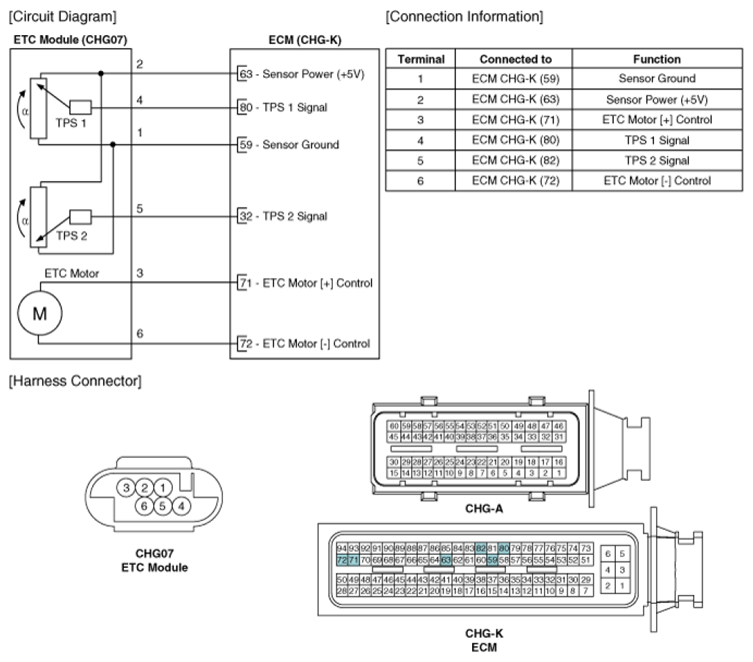

Home >> Hyundai >> 2014 >> Sonata Hybrid Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Etc (Electronic Throttle Control) System >> Schematic Diagrams >> Circuit Diagram
