Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:

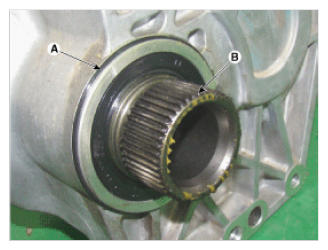

    1. Be careful not to damage the O-ring (A). If the O-ring is damaged, replace with a new one.
    2. Smear and cover splines (B) with molybdenum type high pressure grease.

      TECHLUBE MEGAMAX - ALPHA OR EQUIVALENT

      Fig 1: Identifying O-Ring And Cover Splines
      G09267674Courtesy of HYUNDAI MOTOR AMERICA
    3. Install the propeller shaft to be near runout marking (Transfer assembly 1ea, propeller shaft 1ea) each other.
      Fig 2: Identifying Runout Marking
      G09267675Courtesy of HYUNDAI MOTOR AMERICA
