[Fuel Pump]

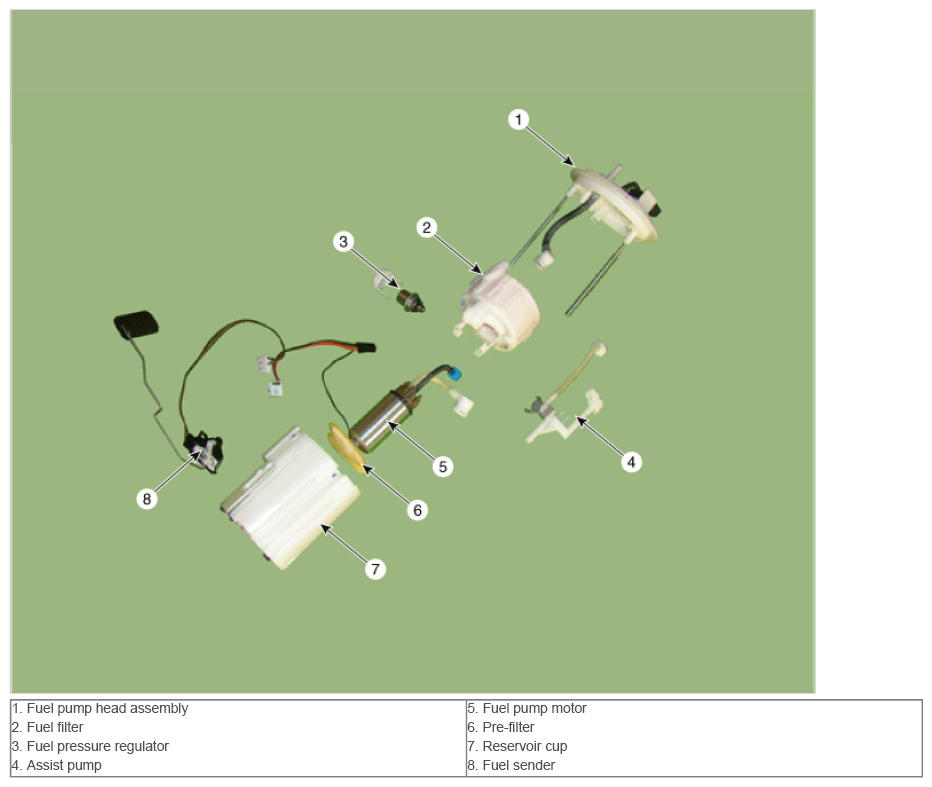

Fig 1: Engine Control/Fuel System Components Location (Fuel Pump)

G09267506

Courtesy of HYUNDAI MOTOR AMERICA
