Repair procedures: Removal

Set shift lever to "N" position.
Remove the air duct.
Refer to AIR CLEANER .
Remove the battery and the battery tray.
Refer to BATTERY

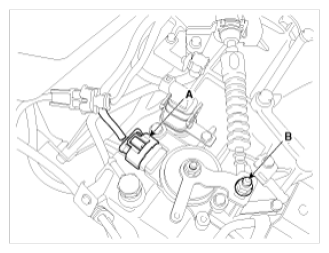

Disconnect the inhibitor switch connector (A).
Remove the shift cable mounting nut (B).
Tightening torque: 7.8~11.8 N.m (0.8~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

Fig 1: Identifying Inhibitor Switch Connector And Shift Cable Mounting Nut
Courtesy of HYUNDAI MOTOR AMERICA

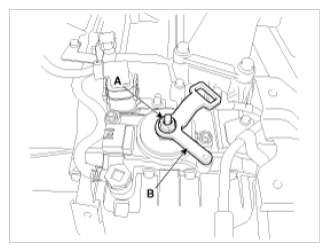

Remove the manual control lever (B) and the washer after removing a nut (A).
Tightening torque: 17.7~24.5 N.m (1.8~ 2.5 kgf.m, 13.0 ~ 18.1 lb-ft)

Fig 2: Identifying Manual Control Lever And Mounting Nut
Courtesy of HYUNDAI MOTOR AMERICA

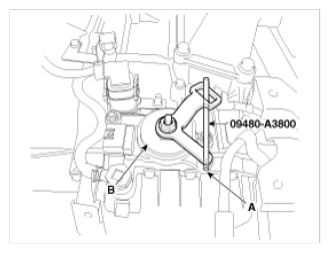

CAUTION: Use a SST (09480-A3800) or 0.1969in. (5mm) bolt, fix the inhibitor manual control lever in the N jig hole (A) when you assemble the inhibitor (B).

Fig 3: Assembling Inhibitor Using Tool
Courtesy of HYUNDAI MOTOR AMERICA

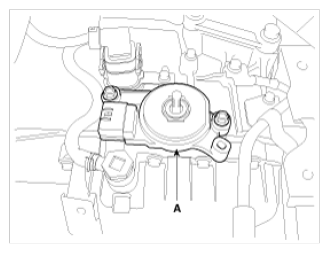

Remove the inhibitor assembly (A) after removing the bolts (2ea).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 4: Identifying Inhibitor Assembly
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: When installing, tighten the inhibitor assembly mounting bolt to the specification shown above.
