Components Location

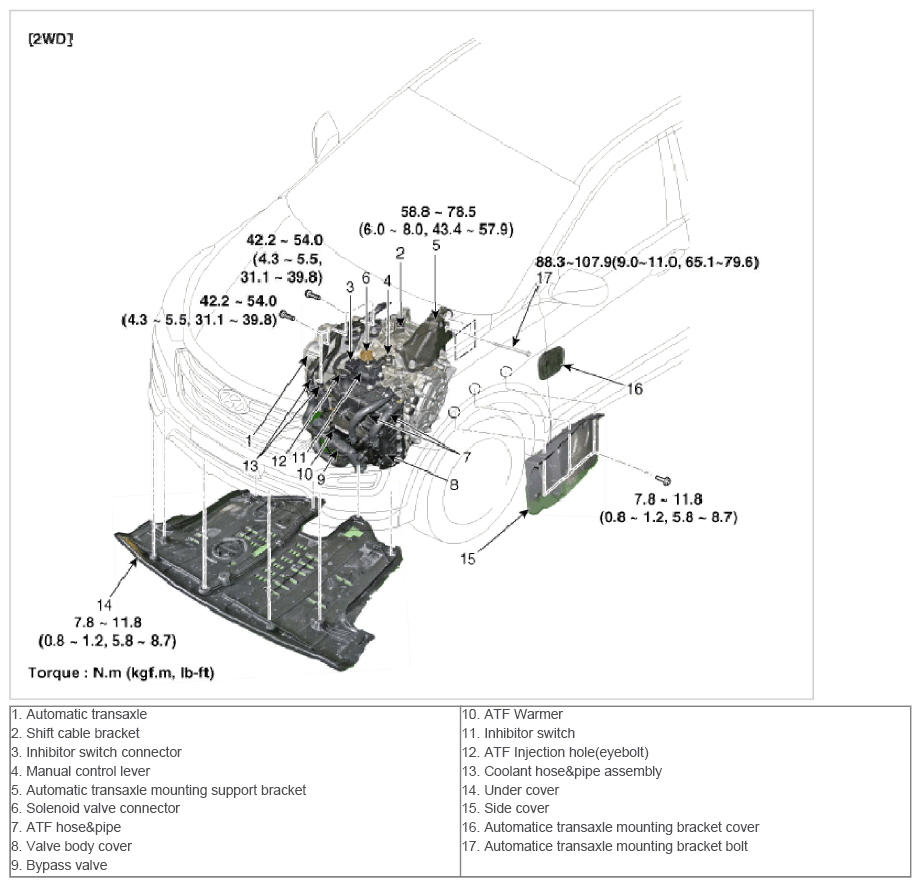

Fig 1: Automatic Transaxle System Components Location With Torque Specifications (2WD)
G09367591Courtesy of HYUNDAI MOTOR AMERICA

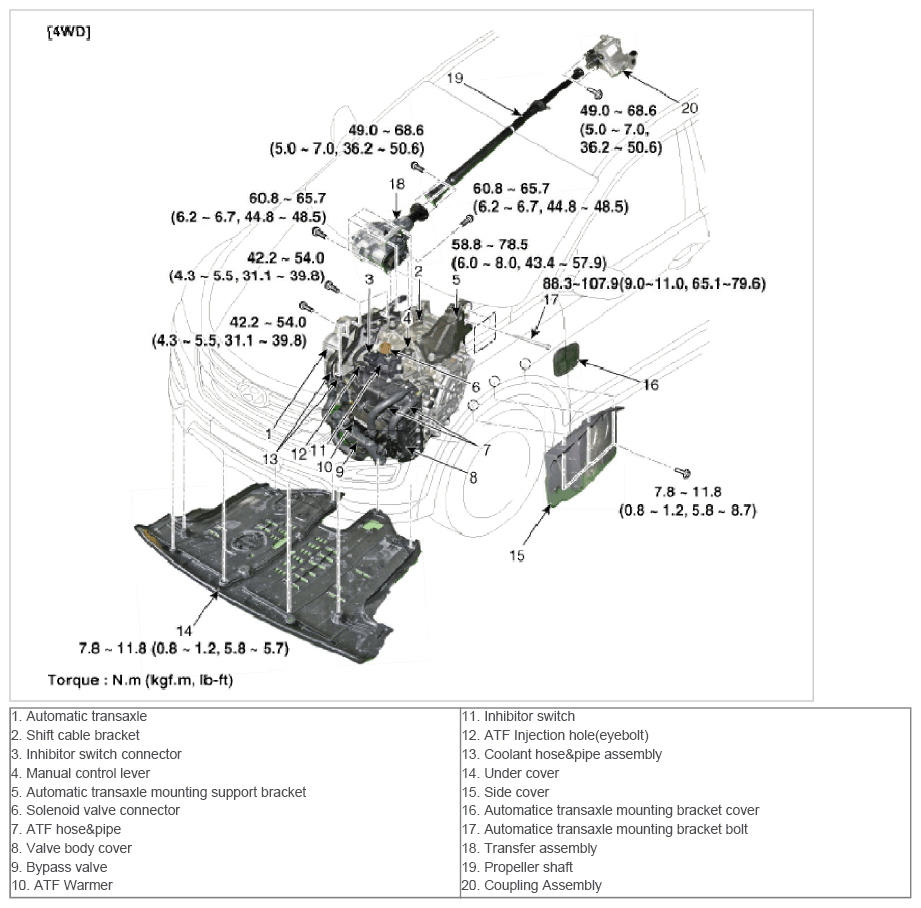

Fig 2: Automatic Transaxle System Components Location With Torque Specifications (4WD)
G09367593Courtesy of HYUNDAI MOTOR AMERICA
