Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Lift the vehicle.
  3. Disconnect the canister close valve connector (A).
  4. Disconnect the ventilation tube quick-connector (B) from the fuel tank air filter and canister close valve.

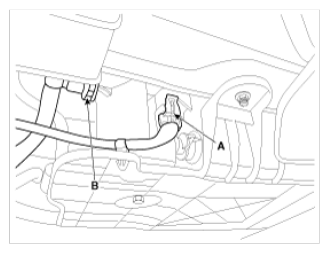

    Fig 1: Identifying Canister Close Valve Connector And Ventilation Tube Quick-Connector
    G09367526Courtesy of HYUNDAI MOTOR AMERICA
  5. Disconnect the vapor tube quick-connector (A).
  6. Remove the canister assembly bracket (D) after removing the mounting bolts (B) and nut (C).

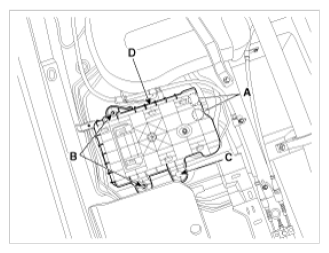

    Fig 2: Identifying Vapor Tube Quick-Connector, Canister Assembly Bracket Mounting Bolts And Nut
    G09367527Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the canister bracket (B) installation bolt (A).

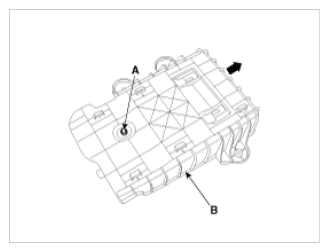

    Fig 3: Removing Canister Bracket
    G09367528Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the fuel tank air filter & canister close valve assembly (A) after rotating it in the direction of the arrow in the figure.

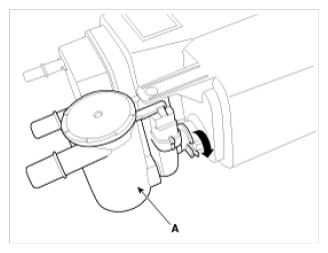

    Fig 4: Removing Fuel Tank Air Filter & Canister Close Valve Assembly
    G09367529Courtesy of HYUNDAI MOTOR AMERICA
  9. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter (C) after rotating it in the direction of the arrow in the figure.
    Fig 5: Identifying Fuel Tank Air Filter Lever
    G09367530Courtesy of HYUNDAI MOTOR AMERICA
    Fig 6: Removing Canister Close Valve From Fuel Tank Air Filter
    G09367531Courtesy of HYUNDAI MOTOR AMERICA
