Repair Procedures: Removal

  1. Disconnect the battery (-) terminal and (+) terminal (A).
  2. Remove the battery mounting bracket (B) and the insulation pad and then remove the battery (C).

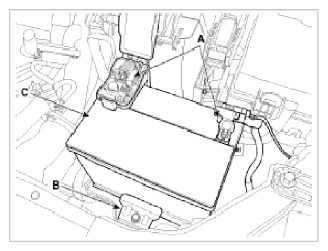

    Fig 1: Identifying Battery, Mounting Bracket And Terminals
    G09364834Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the air cleaner.

    Refer to AIR CLEANER .

  4. Remove the battery tray (A) after removing the bolts (B).

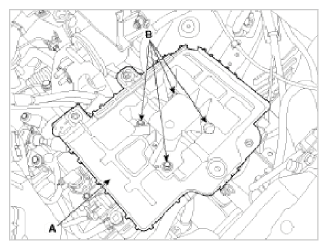

    Fig 2: Identifying Battery Tray And Bolts
    G09364835Courtesy of HYUNDAI MOTOR AMERICA
