Repair Procedures: Removal

Disconnect the battery negative terminal.
Disconnect the air compressor connector (A) and the alternator connector (B), and remove the cable from alternator "B" terminal (C).

Fig 1: Identifying Air Compressor Connector, Alternator Connector And Alternator Terminals
Courtesy of HYUNDAI MOTOR AMERICA

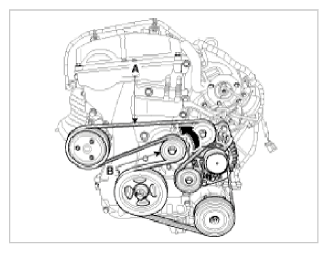

Remove the drive belt (A) after turning the drive belt tensioner (B) counter clockwise.

Fig 2: Turning Drive Belt Tensioner To Counter Clockwise
Courtesy of HYUNDAI MOTOR AMERICA

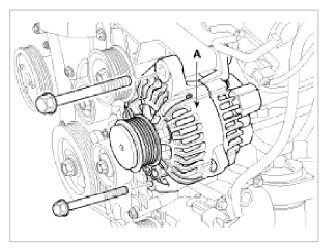

Full out the through bolt and then remove the alternator (A).

Fig 3: Identifying Alternator
Courtesy of HYUNDAI MOTOR AMERICA
