Home >> Hyundai >> 2014 >> Santa Fe Sport Base, FWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> Front Wheel Speed Sensor >> Components and Components Location >> Components

Components and Components Location: Components

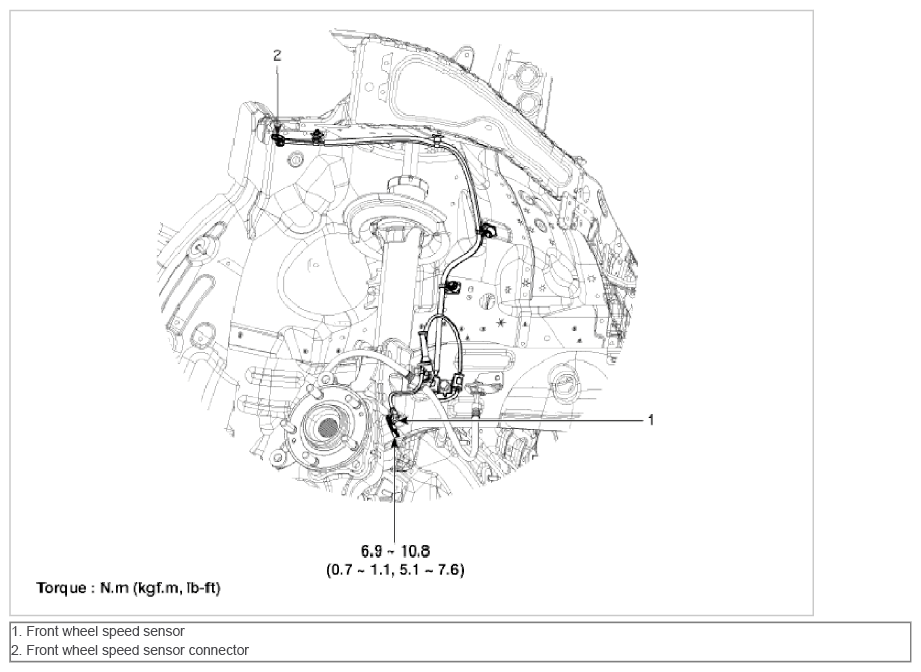

Fig 1: Front Wheel Speed Sensor Connector With Torque Specification

G09368436

Courtesy of HYUNDAI MOTOR AMERICA
