Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver crash pad lower panel.

    Refer to CRASH PAD LOWER PANEL .

  3. Remove the smart key unit (B) after loosening the mounting bolts (2EA) and disconnecting the connector(A).

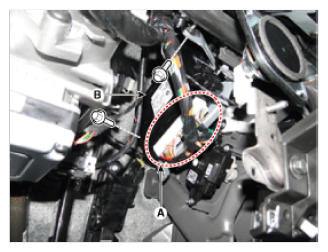

    Fig 1: Identifying Smart Key Unit Connector And Screw
    G09366093Courtesy of HYUNDAI MOTOR AMERICA
