Removal & Installation: Disassembly

Loosen the screw and then remove the lower cover (A) from the steering wheel body.

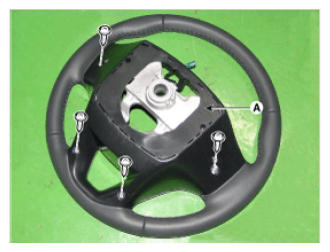

Fig 1: Identifying Lower Cover Screws
Courtesy of HYUNDAI MOTOR AMERICA

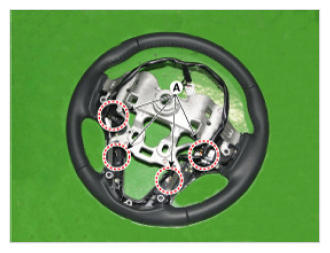

Fig 2: Identifying Steering Wheel Body Lower Cover Screws
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the steering wheel remote switch connector (A).

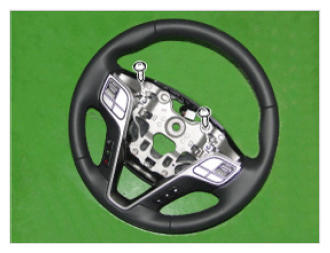

Fig 3: Identifying Steering Wheel Remote Switch Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Remove the steering wheel remote switch (A) and (B).

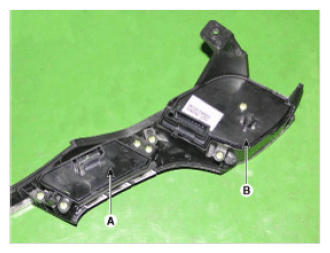

Fig 4: Identifying Steering Wheel Remote Switch
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of the removal.
