Repair Procedures: Removal

  1. Remove the air duct.

    Refer to AIR CLEANER .

  2. Remove the battery and the battery tray.

    Refer to BATTERY .

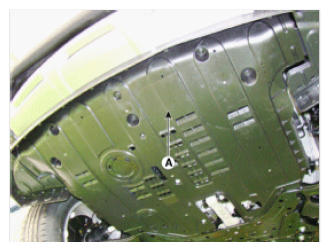

  3. Remove the under cover (A).

    Tightening torque:

    7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

    Fig 1: Identifying Under Cover
    G09270885Courtesy of HYUNDAI MOTOR AMERICA
  4. Drain the coolant.

    Refer to COOLANT .

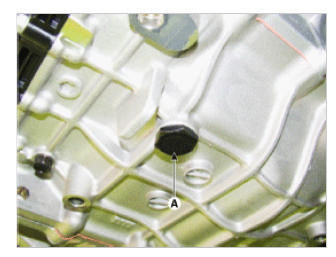

  5. Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.

    Tightening torque:

    38.2 ~ 48.1 N.m (3.9 ~ 4.9 kgf.m, 28.2 ~ 35.4 lb-ft)

    Fig 2: Identifying Drain Plug
    G09270886Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Replace the gasket before reinstalling the drain plug.

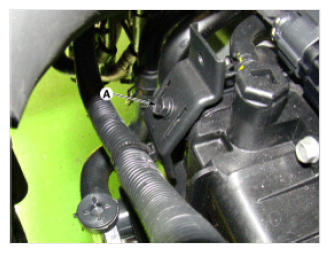

  6. Remove the wiring bracket installation bolt (A).
    Fig 3: Identifying Wiring Bracket Installation Bolt
    G09270887Courtesy of HYUNDAI MOTOR AMERICA

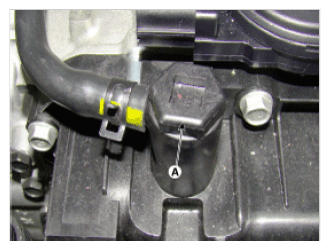

  7. Remove the ATF Injection hole (eyebolt) (A).

    Tightening torque:

    2.9 ~ 4.9 N.m (0.3 ~ 0.5 kgf.m, 2.2 ~ 3.6 lb-ft)

    Fig 4: Identifying ATF Injection Hole (Eyebolt)
    G09270888Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Replace the O-Ring (A) before reinstalling the eyebolt.
    Fig 5: Identifying Eyebolt O-Ring
    G09270889Courtesy of HYUNDAI MOTOR AMERICA

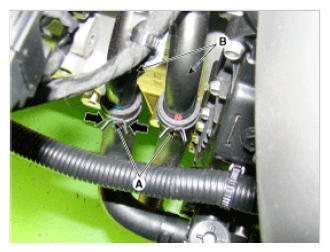

  8. Disconnect the coolant hose (B) after removing the coolant hose clamp (A).
    Fig 6: Removing Coolant Hose Clamp
    G09270890Courtesy of HYUNDAI MOTOR AMERICA

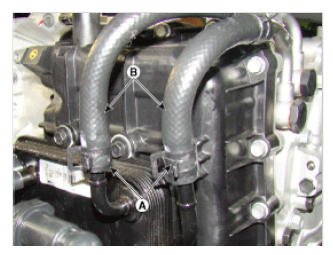

  9. Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).
    Fig 7: Identifying Automatic Transaxle Fluid Cooler Hose Clamp And Hose
    G09270891Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: When hose & pipe assembly
    Align marking of pipe (B), marking of hose (A), and matching color each other.
    Fig 8: Identifying Pipe And Hose Matching Mark
    G09270892Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the valve body cover (A).

    Tightening torque:

    (A) 13.7 ~ 15.7 N.m (1.4 ~ 1.6 kgf.m, 10.1 ~ 11.6 lb-ft)

    Fig 9: Identifying Valve Body Cover
    G09270893Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Replace the gasket (A) before reinstalling the valve body cover.
    Fig 10: Identifying Valve Body Cover Gasket
    G09270894Courtesy of HYUNDAI MOTOR AMERICA

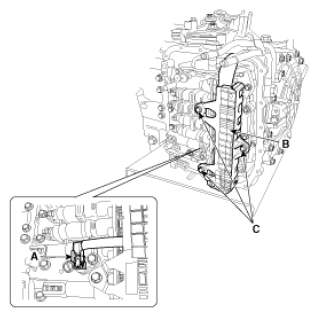

  11. Remove the bolts (C) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).

    Tightening torque:

    9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

    Fig 11: Identifying Solenoid Valve Connector, Oil Temperature Sensor Connector And Mounting Bolts
    G09270895Courtesy of HYUNDAI MOTOR AMERICA
  12. Remove the solenoid valve support bracket (B) and the valve body mounting bolt (A-1ea).

    Tightening torque:

    9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

    Fig 12: Identifying Solenoid Valve Support Bracket
    G09270896Courtesy of HYUNDAI MOTOR AMERICA
  13. Remove the torque converter control solenoid valve (A).
    Fig 13: Identifying Torque Converter Control Solenoid Valve
    G09270897Courtesy of HYUNDAI MOTOR AMERICA
