Components and Components Location: Components

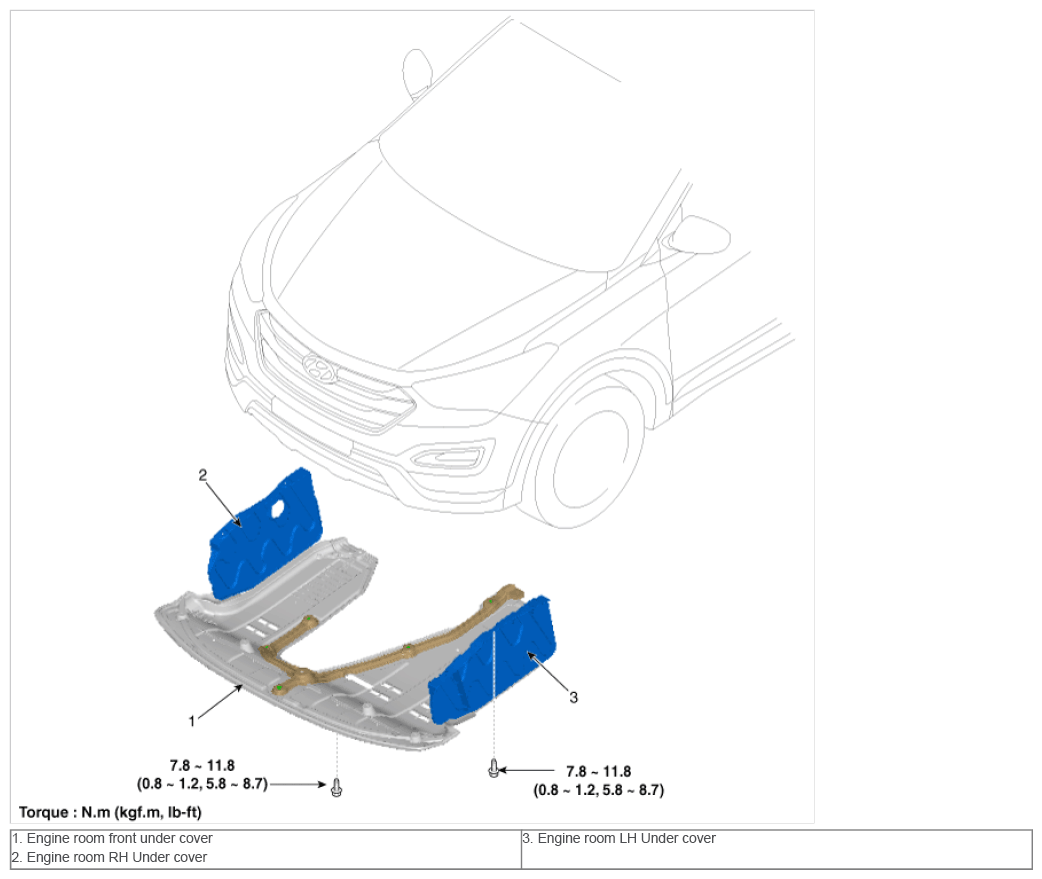

Fig 1: Engine Room Under Cover And Bolts With Torque Specifications

G09267166

Courtesy of HYUNDAI MOTOR AMERICA
