Engine Mounting Bracket

Disconnect the battery "-" terminal.
Install the jack to the edge of the upper oil pan to support the engine.

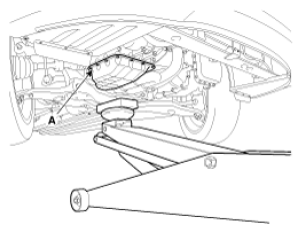

Fig 1: Supporting Engine Using Jack
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Insert the rubber block between jack and upper oil pan.
Disconnect the engine earth cable, and then remove the engine mounting support bracket (A).
Tightening torque

Bolts (B) & Nut (C):

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

Nut (D):

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

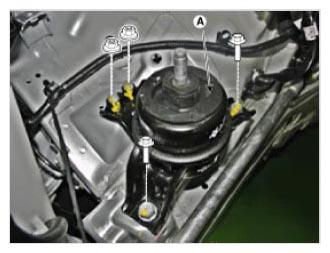

Fig 2: Identifying Engine Mounting Support Bracket, Bolts And Nuts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the engine mounting bracket (A).
Tightening torque:

63.7 ~ 83.3 N.m (6.5 ~ 8.5 kgf.m, 47.0 ~ 61.5 lb-ft)

Fig 3: Identifying Engine Mounting Bracket And Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
