Automatic Transaxle Hydraulic System
>>
Fluid
>>
Components and Components Location
>>
Component Location
Component Location

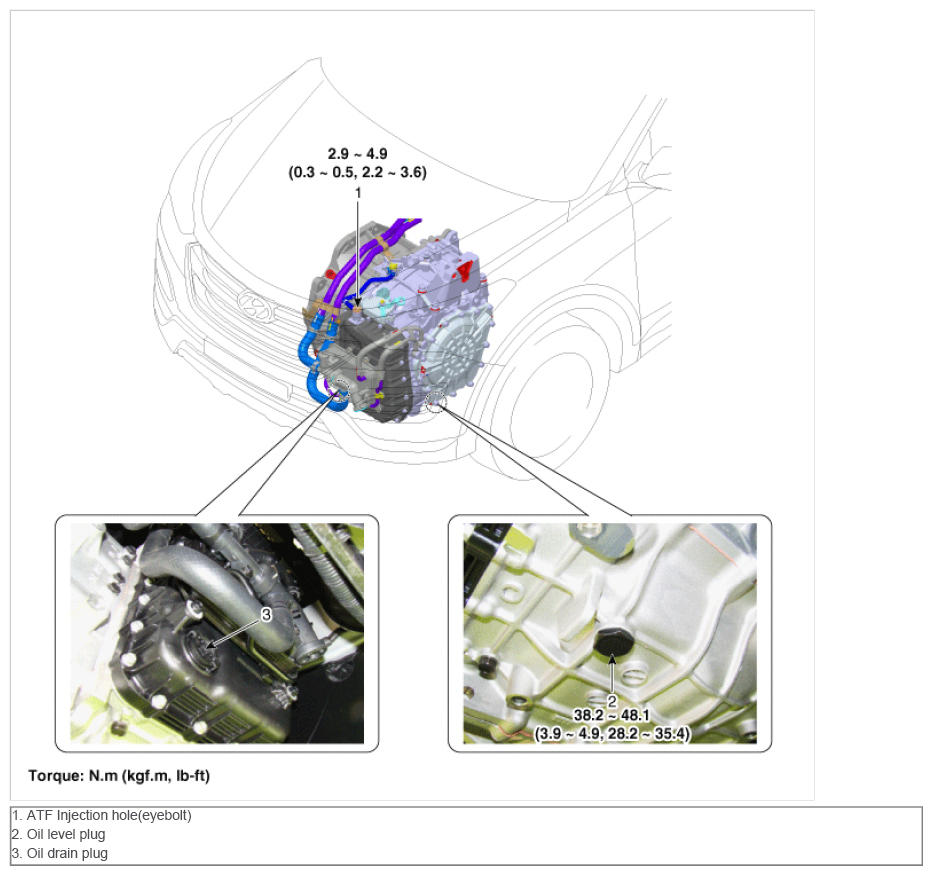

Fig 1: ATF Injection Hole, Oil Level Plug & Oil Drain Plug With Torque Specifications
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
