Santa Fe GLS, FWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle Hydraulic System
>>
Components and Components Location
>>
Component Location
Component Location

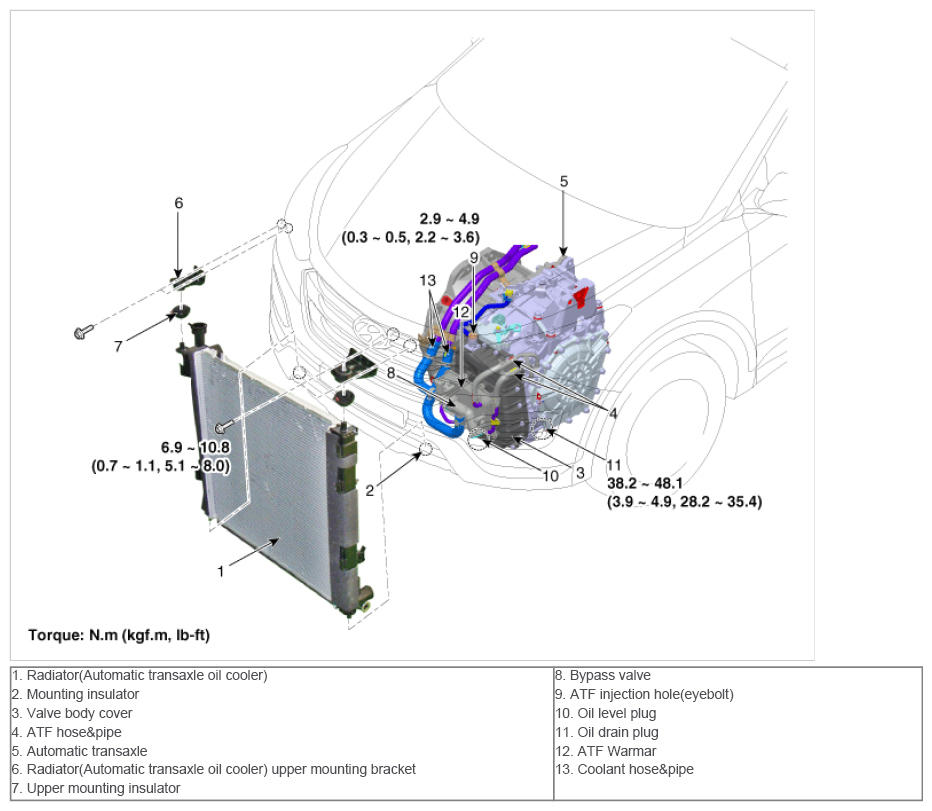

Fig 1: Hydraulic System Component Location (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

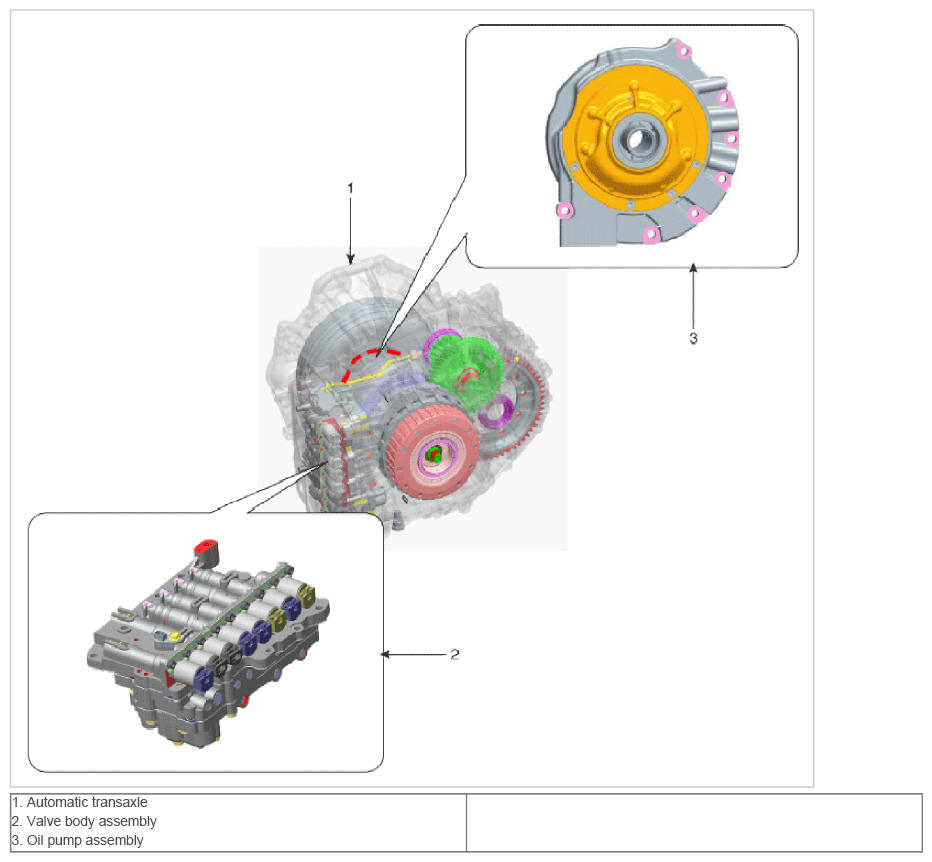

Fig 2: Hydraulic System Component Location (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
