Removal & Installation: Notes
- Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
- Turn the steering wheel so that the front wheels can face straight ahead.
- Remove the airbag module.
(Refer to "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

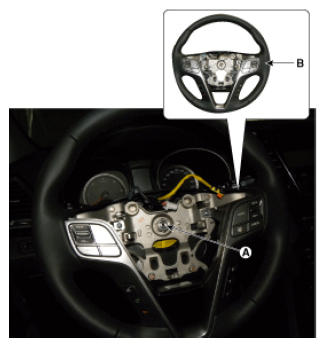

- Disconnect the connector & lock nut (A) and then remove the steering wheel by using special service tools (09561-11001).
Tightening torque:
44.1 ~ 49.0N.m (4.5 ~ 5.0 kgf.m, 32.5 ~ 36.2lb-ft)
NOTE:- Do not hammer on the steering wheel to remove it; it may damage the steering column.
- Installation is the reverse of the removal.
