Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver airbag module.

    (Refer to "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

  3. Remove the steering wheel.

    (Refer to Removal .

  4. Disengage the steering wheel remote control switch assembly.

    (Refer to "AUDIO REMOTE CONTROL ")

  5. Remove the remote control switch (A) and (B).

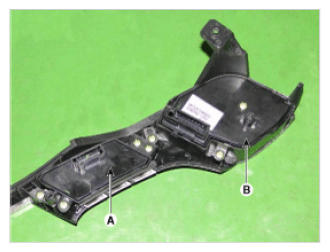

    Fig 1: Identifying Remote Control Switch
    G09268028Courtesy of HYUNDAI MOTOR AMERICA
  6. Install in the reverse order of removal.
