Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

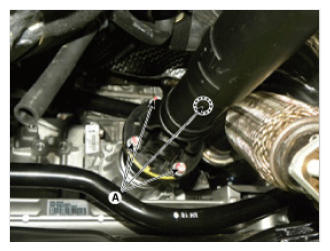

After making a match mark on the flange yoke and transfer companion, remove the propeller shaft mounting bolts (A).
Tightening torque:

49.0 ~ 68.6N.m (5.0 ~ 7.0kgf.m, 36.1 ~ 50.6lb-ft)

Fig 1: Identifying Propeller Shaft Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

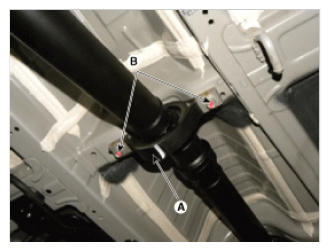

Remove the center bearing bracket (A) mounting bolts (B-2ea).
Tightening torque:

49.0 ~ 68.6N.m (5.0 ~ 7.0kgf.m, 36.1 ~ 50.6lb-ft)

Fig 2: Identifying Center Bearing Bracket And Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

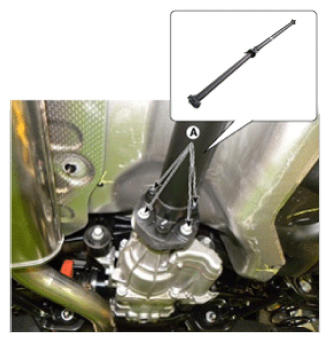

After making a match mark on the flange yoke and 4WD coupling, remove the propeller shaft mounting bolts (A).
Tightening torque:

49.0 ~ 68.6N.m (5.0 ~ 7.0kgf.m, 36.1 ~ 50.6lb-ft)
NOTE:
- Do not reuse bolts.
Fig 3: Identifying Propeller Shaft Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
NOTE:
- When assembling propeller shaft, locate marks on flange yoke and T/M transfer flange to be nearly the same location.
