Repair Procedures: Removal

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Remove the rear seat assembly.
(Refer to "REAR SEAT ASSEMBLY ")
Remove the fuel pump service cover (A).

Fig 1: Identifying Fuel Pump Service Cover
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).
Disconnect the fuel feed tube quick connector (C).

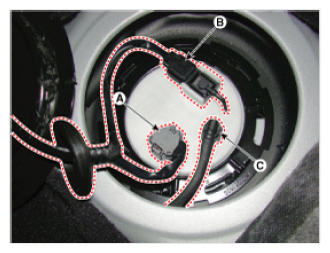

Fig 2: Identifying Fuel Pump Connector, Fuel Tank Pressure Sensor Connector And Fuel Feed Tube Quick Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the rear - LH wheel & tire.
Lift the vehicle and support the fuel tank with a jack.
Remove the center & rear muffler assembly.
[4 WD]

(Refer to "MUFFLER ")
Remove the propeller shaft.
[4WD]

(Refer to "PROPELLER SHAFT ")
Disconnect the fuel filler hose (A) and the ventilation tube quick-connector (B).

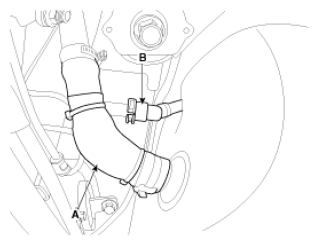

Fig 3: Identifying Fuel Filler Hose And Ventilation Tube Quick-Connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the ventilation tube quick-connector (A).
Disconnect the vapor tube quick-connector (B).

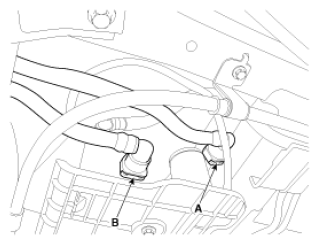

Fig 4: Identifying Ventilation Tube Quick-Connector And Vapor Tube Quick-Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the fuel tank (B) from the vehicle after removing the fuel tank band (A).

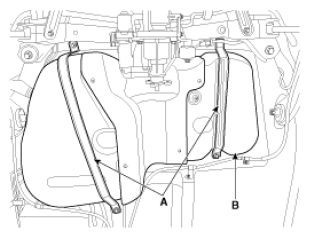

Fig 5: Identifying Fuel Tank And Fuel Tank Band
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: When removing the fuel tank, the fuel tank must be tilted because of interfering with coupling.
