Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

  2. Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

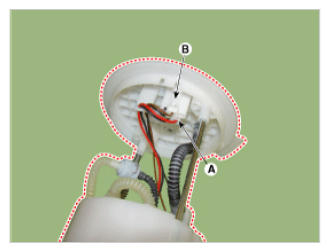

    Fig 1: Identifying Electric Pump Wiring Connector And Fuel Sender Connector
    G09267535Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the fuel sender (A) after releasing the fix hook.

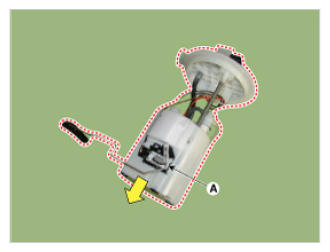

    Fig 2: Removing Fuel Sender After Releasing Fix Hook
    G09267536Courtesy of HYUNDAI MOTOR AMERICA
    Fig 3: Identifying Fuel Sender
    G09267537Courtesy of HYUNDAI MOTOR AMERICA
