Repair Procedures: Removal

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Remove the rear seat.
(Refer to "REAR SEAT ASSEMBLY ")
Remove the fuel pump service cover (A).

Fig 1: Identifying Fuel Pump Service Cover
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).
Disconnect the fuel feed tube quick connector (C).

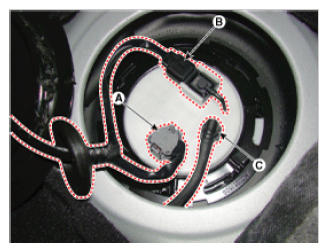

Fig 2: Identifying Fuel Pump Connector, Fuel Tank Pressure Sensor Connector And Fuel Feed Tube Quick Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove locking ring (A) by using the special service tool.

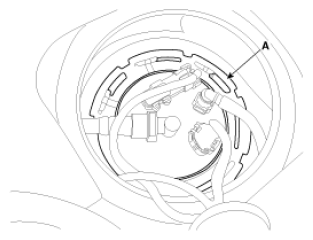

Fig 3: Identifying Locking Ring
Courtesy of HYUNDAI MOTOR AMERICA

Information

The locking ring should be removed by a locking ring remover as below.

This tool can be purchased from a common tool supplier.

Fig 4: Identifying Locking Ring Remover
Courtesy of HYUNDAI MOTOR AMERICA
