Repair Procedures: Removal

  1. Lift the vehicle.
  2. Disconnect the fuel filler hose (A).
  3. Disconnect the ventilation tube quick-connector (B).

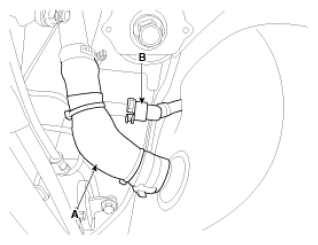

    Fig 1: Identifying Fuel Filler Hose And Ventilation Tube Quick-Connector
    G09267548Courtesy of HYUNDAI MOTOR AMERICA
  4. Open the fuel filler door and unfasten the filler-neck assembly mounting screw (A).

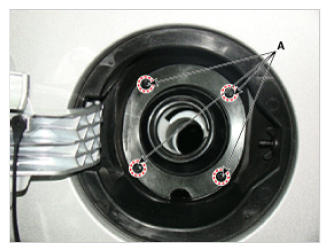

    Fig 2: Identifying Fuel Filler Door And Unfasten Filler-Neck Assembly Mounting Screw
    G09267549Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the rear-LH wheel, tire and the inner wheel house.
  6. Remove the filler-neck assembly from the vehicle after removing the bracket mounting nut (A).

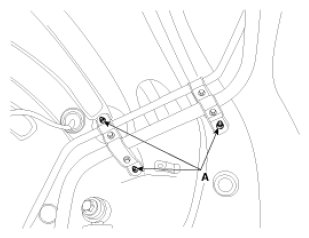

    Fig 3: Identifying Filler-Neck Assembly Bracket Mounting Nut
    G09267550Courtesy of HYUNDAI MOTOR AMERICA
