Repair Procedures: Removal

WARNING: In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any repair work right after engine stops.

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

CAUTION: When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the GDS after completion of "Release Residual Pressure in Fuel Line" work.

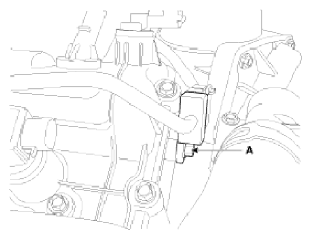

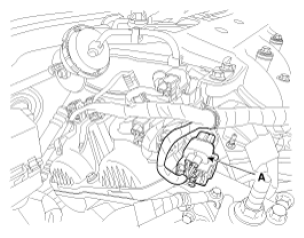

Disconnect the injectors & rail pressure sensor connector (A).

Fig 1: Identifying Injectors & Rail Pressure Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the intake manifold.
(Refer to "INTAKE MANIFOLD ")

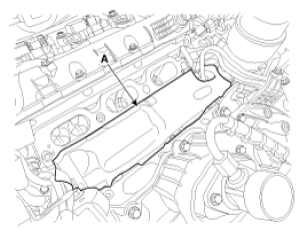

Remove the injector foam (A).

Fig 2: Identifying Injector Foam
Courtesy of HYUNDAI MOTOR AMERICA
Remove the high pressure fuel pipe.
1. Loosen the flange nut in the order of A, B with SST(09314-3V100).

  Fig 3: Identifying Special Tool (09314-3V100)
  Courtesy of HYUNDAI MOTOR AMERICA

  Fig 4: Loosening High Pressure Fuel Pipe Flange Nut Using Tool (1 Of 5)
  Courtesy of HYUNDAI MOTOR AMERICA

  Fig 5: Loosening High Pressure Fuel Pipe Flange Nut Using Tool (2 Of 5)
  Courtesy of HYUNDAI MOTOR AMERICA

  Fig 6: Loosening High Pressure Fuel Pipe Flange Nut Using Tool (3 Of 5)
  Courtesy of HYUNDAI MOTOR AMERICA

  Fig 7: Loosening High Pressure Fuel Pipe Flange Nut Using Tool (4 Of 5)
  Courtesy of HYUNDAI MOTOR AMERICA

  Fig 8: Loosening High Pressure Fuel Pipe Flange Nut Using Tool (5 Of 5)
  Courtesy of HYUNDAI MOTOR AMERICA
2. Remove the high pressure pipe bracket bolt (A).

  Fig 9: Identifying High Pressure Pipe Bracket Bolt
  Courtesy of HYUNDAI MOTOR AMERICA
3. Remove the function block installation bolt (A).

  Fig 10: Identifying Function Block Installation Bolt
  Courtesy of HYUNDAI MOTOR AMERICA
Remove the installation bolt (A), and then remove the delivery pipe and injector assembly from the engine.

Fig 11: Identifying Delivery Pipe And Injector Assembly Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

Fig 12: Identifying Delivery Pipe And Injector Assembly
Courtesy of HYUNDAI MOTOR AMERICA
