Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the accelerator position sensor connector (A).
  3. Remove the installation nuts (C), the bolt (B) and then remove the accelerator pedal module.

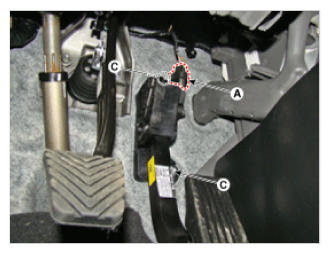

    Fig 1: Identifying Accelerator Position Sensor Connector And Mounting Nut
    G09267551Courtesy of HYUNDAI MOTOR AMERICA
    Fig 2: Identifying Accelerator Position Sensor Connector Mounting Nut
    G09267552Courtesy of HYUNDAI MOTOR AMERICA
