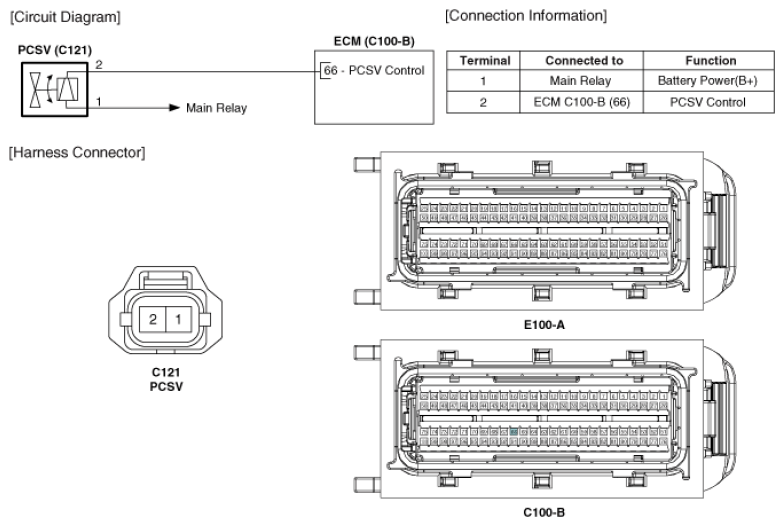

Home >> Hyundai >> 2014 >> Santa Fe GLS, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Purge Control Solenoid Valve (PCSV) >> Schematic Diagrams >> Circuit Diagram
