[CVVT Oil Control Valve (Exhaust)]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the CVVT oil control valve connector (A).

    [Bank 1]

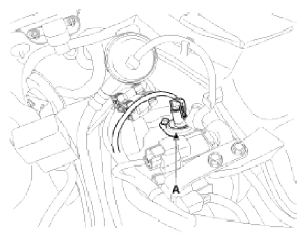

    Fig 1: Identifying CVVT Oil Control Valve Connector (Bank 1)
    G09270826Courtesy of HYUNDAI MOTOR AMERICA

    [Bank 2]

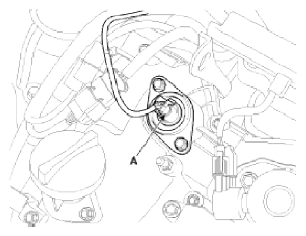

    Fig 2: Identifying CVVT Oil Control Valve Connector (Bank 2)
    G09270827Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the cylinder head cover.

    (Refer to "CYLINDER HEAD COVER ")

  4. Remove the installation bolt (A), and then remove the valve from the engine.

    [Bank 1]

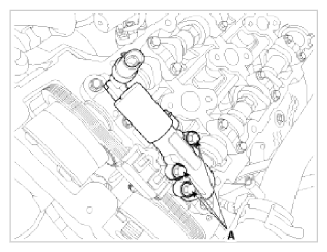

    Fig 3: Identifying Cylinder Head Cover Mounting Bolt (Bank 1)
    G09270828Courtesy of HYUNDAI MOTOR AMERICA

    [Bank 2]

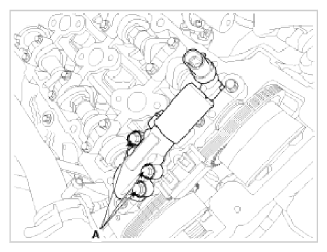

    Fig 4: Identifying Cylinder Head Cover Mounting Bolt (Bank 2)
    G09270829Courtesy of HYUNDAI MOTOR AMERICA
