Repair Procedures: Removal

Set No. 1 cylinder to TDC/compression.

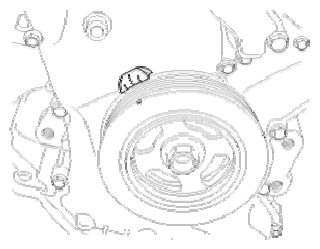

1. Turn the crankshaft pulley clockwise and align its groove with the timing mark "T" of the lower timing chain cover.

  Fig 1: Identifying Timing Mark On Lower Timing Chain Cover
  Courtesy of HYUNDAI MOTOR AMERICA

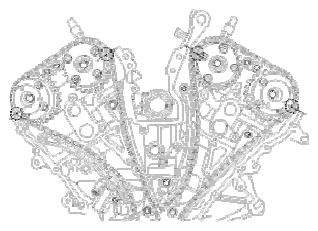

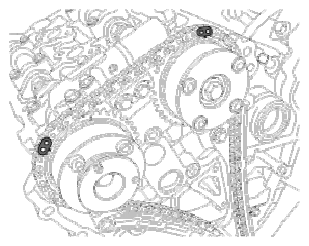

2. Check that the mark of the camshaft timing sprockets are in straight line on the cylinder head surface as shown in the illustration. If not, turn the crankshaft clockwise one revolution (360°).

  Fig 2: Identifying Cylinder Head Surface
  Courtesy of HYUNDAI MOTOR AMERICA

  NOTE: Do not rotate engine counterclockwise.
Remove the timing chain cover.
Refer to TIMING CHAIN COVER .

CAUTION: Be careful not to damage the contact surfaces of cylinder block, cylinder head and timing chain cover.

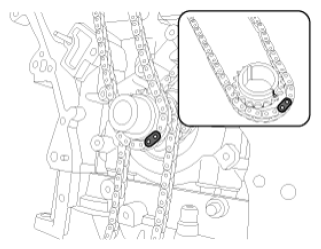

NOTE: Before removing the timing chain, mark the RH/LH timing chain with an identification based on the location of the sprocket because the identification mark on the chain for TDC (Top Dead Center) can be erased.

Fig 3: Identifying Marks On RH/LH Timing Chain And Sprocket
Courtesy of HYUNDAI MOTOR AMERICA

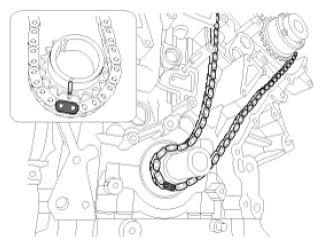

Fig 4: Identifying Alignment Marks On Timing Chain And Sprocket
Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Identifying Marks On RH/LH Timing Chain And Sprocket
Courtesy of HYUNDAI MOTOR AMERICA

Fig 6: Identifying Alignment Marks On Timing Chain And Sprocket
Courtesy of HYUNDAI MOTOR AMERICA

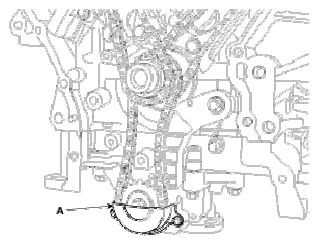

Remove the oil pump chain cover (A).

Fig 7: Identifying Oil Pump Chain Cover
Courtesy of HYUNDAI MOTOR AMERICA
Remove the oil pump chain tensioner assembly (A).

Fig 8: Identifying Oil Pump Chain Tensioner Assembly
Courtesy of HYUNDAI MOTOR AMERICA

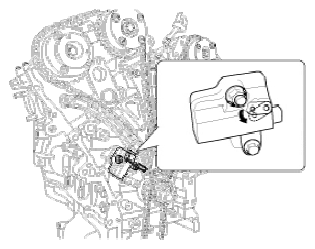

Release the ratchet by pulling the link down using a thin rod. Compress the piston and then insert a stopper pin into the hole on the ratchet to hold the compressed piston.

Fig 9: Inserting Stopper Pin Into Hole On Ratchet
Courtesy of HYUNDAI MOTOR AMERICA
Remove the RH timing chain cam to cam guide (A).

Fig 10: Identifying Cam Guide
Courtesy of HYUNDAI MOTOR AMERICA
Remove the RH timing chain auto tensioner (A) and the RH timing chain tensioner arm (B).

Fig 11: Identifying RH Timing Chain Auto Tensioner And RH Timing Chain Tensioner Arm
Courtesy of HYUNDAI MOTOR AMERICA
Remove the RH timing chain guide (A).

Fig 12: Identifying RH Timing Chain Guide
Courtesy of HYUNDAI MOTOR AMERICA
Remove the RH timing chain (A).

Fig 13: Identifying RH Timing Chain
Courtesy of HYUNDAI MOTOR AMERICA

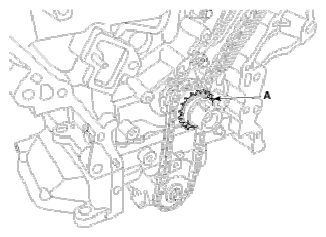

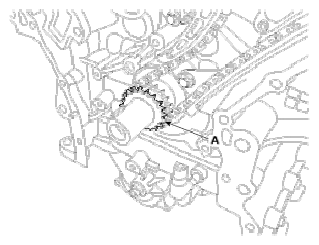

Remove the crankshaft sprocket (A) (RH camshaft drive).

Fig 14: Identifying Crankshaft Sprocket (RH Camshaft Drive)
Courtesy of HYUNDAI MOTOR AMERICA

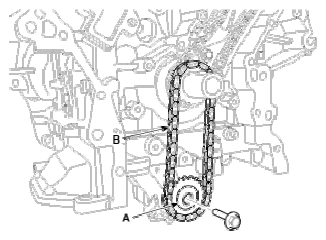

Remove the oil pump chain sprocket (A) and oil pump chain (B).

Fig 15: Identifying Oil Pump Chain Sprocket And Oil Pump Chain
Courtesy of HYUNDAI MOTOR AMERICA

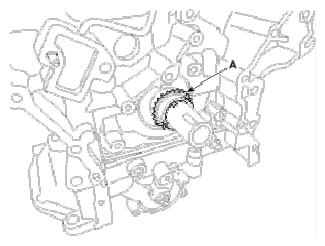

Remove the crankshaft sprocket (A) (Oil pump drive).

Fig 16: Identifying Crankshaft Sprocket (Oil Pump Drive)
Courtesy of HYUNDAI MOTOR AMERICA

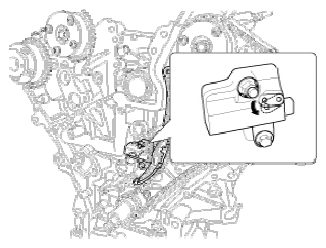

Release the ratchet by pulling the link down using a thin rod. Compress the piston and then insert a stopper pin into the hole on the ratchet to hold the compressed piston.

Fig 17: Inserting Stopper Pin Into Hole On Ratchet
Courtesy of HYUNDAI MOTOR AMERICA

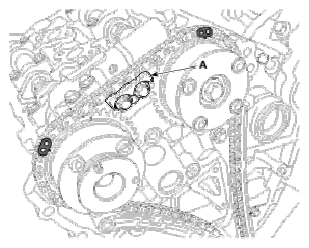

Remove the LH timing chain cam to cam guide (A).

Fig 18: Identifying Cam Guide
Courtesy of HYUNDAI MOTOR AMERICA

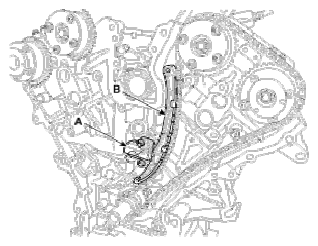

Remove the LH timing chain auto tensioner (A) and LH timing chain tensioner arm (B).

Fig 19: Identifying LH Timing Chain Auto Tensioner And LH Timing Chain Tensioner Arm
Courtesy of HYUNDAI MOTOR AMERICA

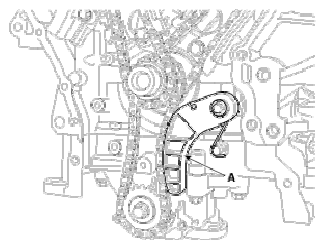

Remove the LH timing chain guide (A).

Fig 20: Identifying LH Timing Chain Guide
Courtesy of HYUNDAI MOTOR AMERICA
Remove the LH timing chain (A).

Fig 21: Identifying LH Timing Chain
Courtesy of HYUNDAI MOTOR AMERICA
Remove the crankshaft sprocket (A). (LH camshaft drive).

Fig 22: Identifying Crankshaft Sprocket (LH Camshaft Drive)
Courtesy of HYUNDAI MOTOR AMERICA

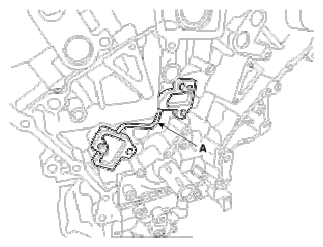

Remove the tensioner adapter assembly (A).

Fig 23: Identifying Tensioner Adapter Assembly
Courtesy of HYUNDAI MOTOR AMERICA
