Repair Procedures: Removal

  1. Remove the LH/RH cylinder head cover.

    Refer to CYLINDER HEAD COVER .

  2. Remove the lower oil pan.

    Refer to OIL PAN .

  3. Remove the drive belt auto tensioner.

    Refer to DRIVE BELT TENSIONER .

  4. Remove the crankshaft damper pulley.

    Refer to CRANKSHAFT DAMPER PULLEY .

  5. Remove the engine mounting support bracket.

    Refer to ENGINE MOUNTING .

  6. Lift up the engine assembly slightly by using a jack to get access to the side of engine.
  7. Remove the water pump and gasket.

    Refer to WATER PUMP .

  8. Remove the timing chain cover (A).

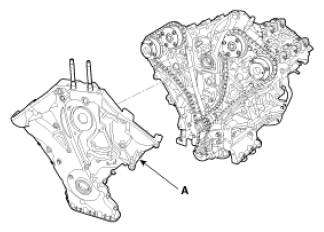

    Fig 1: Identifying Timing Chain Cover
    G09267213Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Be careful not to damage the contact surfaces of cylinder block, cylinder head and timing chain cover.
