Components And Components Location: Components

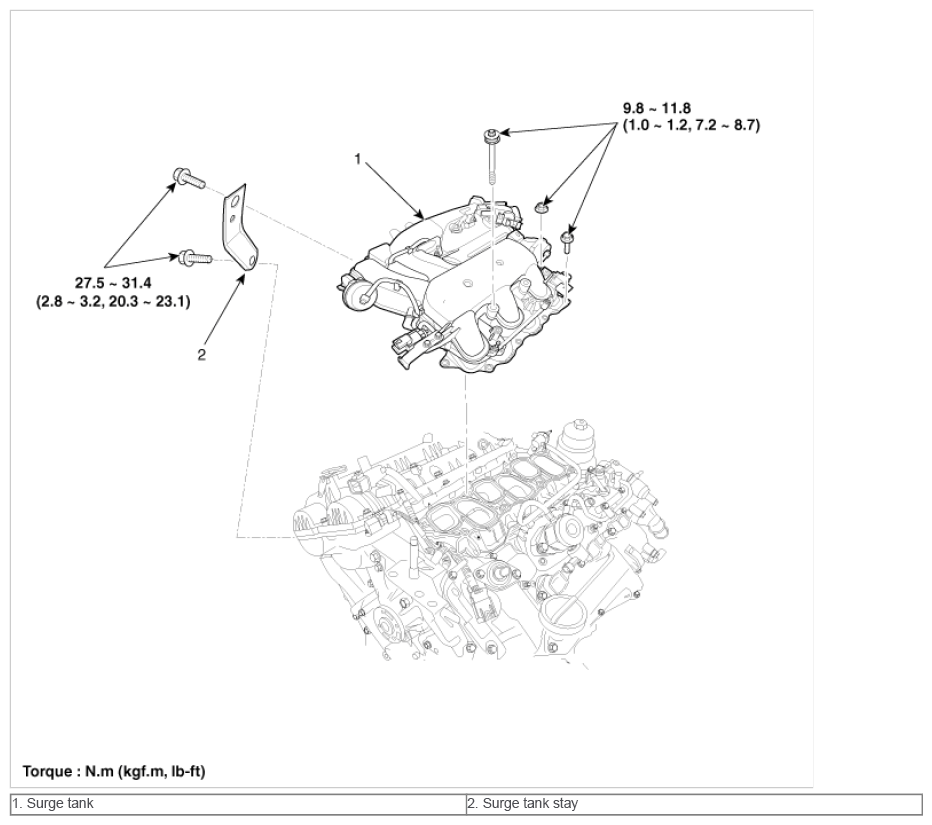

Fig 1: Surge Tank And Surge Tank Stay And Mounting Bolts With Torque Specification

G09267342

Courtesy of HYUNDAI MOTOR AMERICA
