Components and Components Location: Components

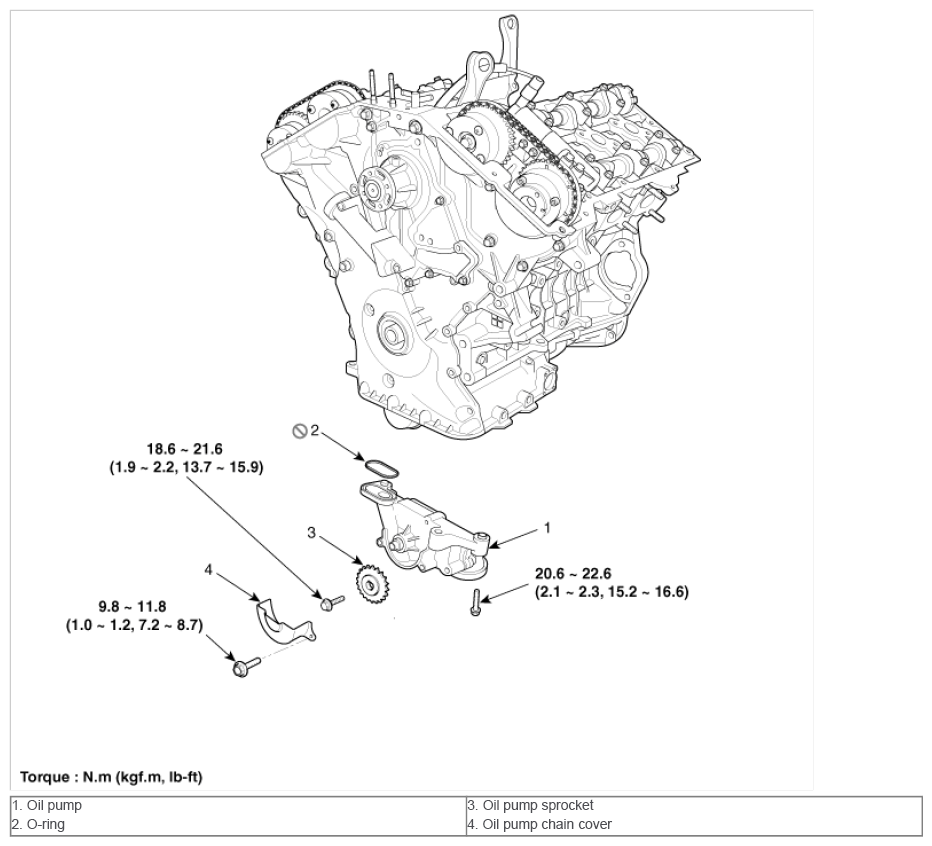

Fig 1: Oil Pump, O-Ring, Oil Pump Sprocket, Oil Pump Chain Cover And Mounting Bolts With Torque Specification

G09267325

Courtesy of HYUNDAI MOTOR AMERICA
