Home >> Hyundai >> 2014 >> Santa Fe GLS, FWD >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System >> Oil Pressure Switch >> Components and Components Location >> Components

Components and Components Location: Components

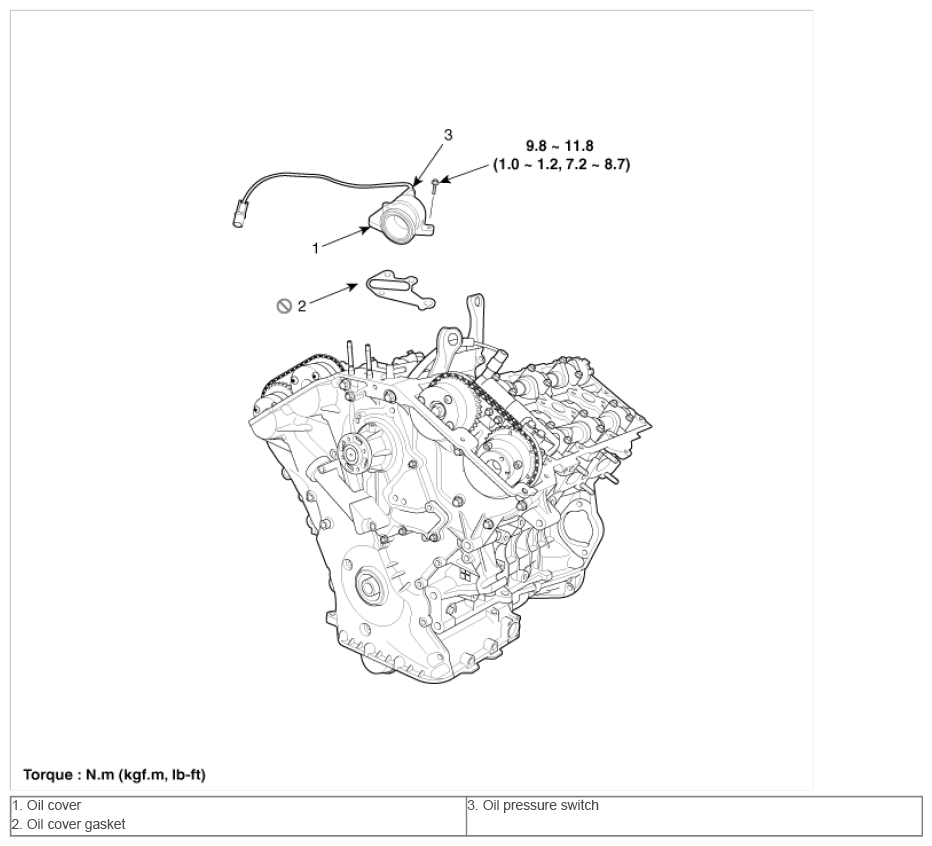

Fig 1: Oil Cover, Oil Cover Gasket, Oil Pressure Switch And Mounting Bolt Torque Specification

G09267329

Courtesy of HYUNDAI MOTOR AMERICA
