Repair Procedures: Replacement

CAUTION:

Prolonged and repeated contact with mineral oil will result in the removal of natural fats from the skin, leading to dryness, irritation and dermatitis. In addition, used engine oil contains potentially harmful contaminants which may cause skin cancer.
Exercise caution in order to minimize the length and frequency of contact of your skin to used oil. Wear protective clothing and gloves. Wash your skin thoroughly with soap and water, or use water-less hand cleaner, to remove any used engine oil. Do not use gasoline, thinners, or solvents.
In order to preserve the environment, used oil and used oil filter must be disposed of only at designated disposal sites.

Park the car on level ground.
Start the engine and let it warm up.
Turn the engine off and open the hood.
Remove the engine cover.
Wait for 5 minutes after loosening the oil filter cap to drain fully the oil in the oil filter.
Drain engine oil.
1. Remove the oil filler cap.
2. After lifting the car, remove the oil drain plug and drain oil into a container.
Replace the oil filter.
1. Disconnect the oil filter cap from the oil filter body.
2. Remove the oil filter element.
3. Check and clean the oil filter installation surface.
4. Check the part number and shape of a new oil filter is same as old one.
5. Install a new oil filter element (A) and a new O-ring (B).

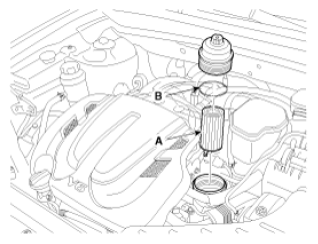

  Fig 1: Identifying Oil Filter Element And O-Ring
  Courtesy of HYUNDAI MOTOR AMERICA
6. Apply clean engine oil to the new O-rings.
  Lightly screw the oil filter cap into place, and tighten it until the O-ring contacts the seat.
7. Finally tighten it again by specified tightening torque.
  Tightening torque:

  24.5 N.m (2.5 kgf.m, 18.1 lb-ft)
Fill new engine oil.
1. Install the oil drain plug (A) with a new gasket.
  Tightening torque:

  34.3 ~ 44.1N.m (3.5 ~ 4.5kgf.m, 25.3 ~ 32.5lb-ft)

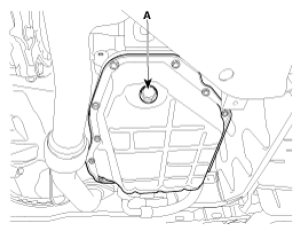

  Fig 2: Identifying Oil Drain Plug
  Courtesy of HYUNDAI MOTOR AMERICA
2. Fill with new engine oil, after removing the engine oil level gauge.
  Capacity

  Total: 6.5 L (6.87 U.S qt., 5.71 lmp.qt., 1.71 U.S.gal.)

  Oil pan: 6.0 L (6.34 U.S qt., 5.28 lmp.qt., 1.58 U.S.gal.)

  Drain and refill including oil filter:

  5.7 L (6.02 U.S.qt., 5.01 lmp.qt., 1.50 U.S.gal.)
  CAUTION:
  - Fill the crankcase to about half the capacity and then fill the remainder after waiting about one minute.
  - Do not fill oil over the 'F' line, checking the level with the oil level gauge frequently to ensure no over filling.
3. Install the oil filler cap and oil level gauge.
Start the engine and check to be sure no oil is leaking from the drain plug or oil filter.
Recheck the engine oil level.
