Charging System: Battery: Troubleshooting

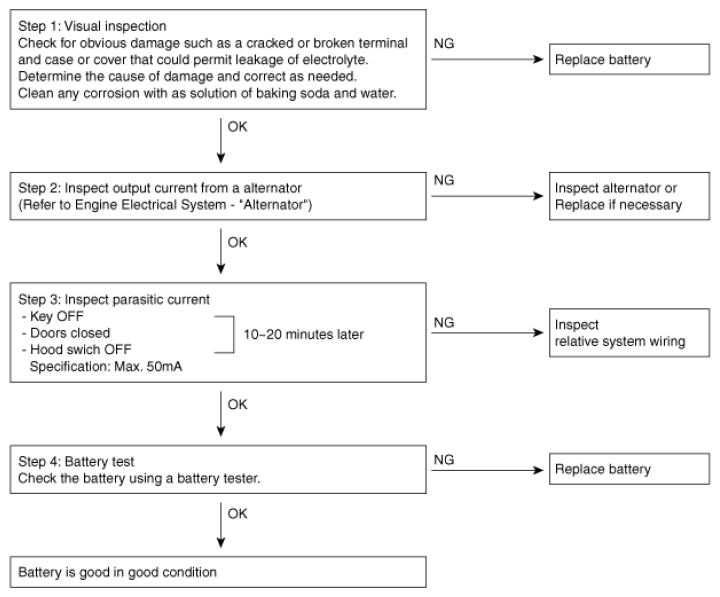

Fig 1: Battery Troubleshooting Chart

G09267398

Courtesy of HYUNDAI MOTOR AMERICA
