Repair Procedures: Removal

Disconnect the battery (-) terminal (A) and then (+) terminal (B).

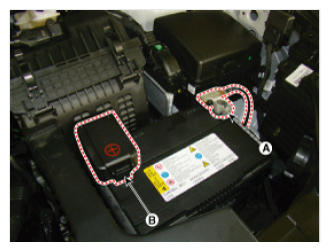

Fig 1: Identifying Battery Negative Terminal And Positive Terminal
Courtesy of HYUNDAI MOTOR AMERICA
Remove the air duct and air cleaner assembly.
Refer to AIR CLEANER .
Remove the battery mounting bracket (B) and the insulation pad (A), and then remove the battery (C).

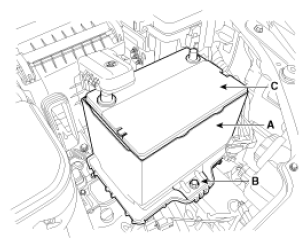

Fig 2: Identifying Battery, Battery Mounting Bracket And Insulation Pad
Courtesy of HYUNDAI MOTOR AMERICA
Remove the battery tray (A) after removing the bolts(B).

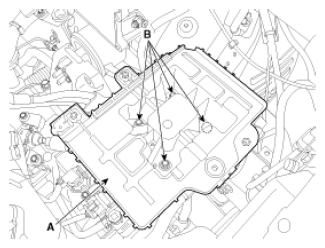

Fig 3: Identifying Battery Tray And Bolts
