Repair Procedures: Removal

  1. Disconnect the battery negative (-) cable.
  2. Disconnect the battery sensor connector.
  3. Remove the battery negative (-) cable (A) after removing the bolts.

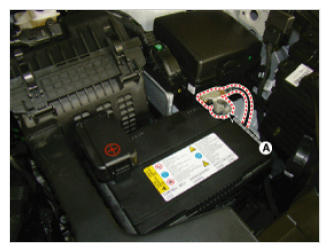

    Fig 1: Identifying Battery Negative Cable Mounting Bolts
    G09267399Courtesy of HYUNDAI MOTOR AMERICA
