Repair Procedures: Removal

  1. Disconnect the battery negative terminal.
  2. Remove the engine cover.
  3. Disconnect the alternator connector (A) and cable (B) from the 'B' terminal.

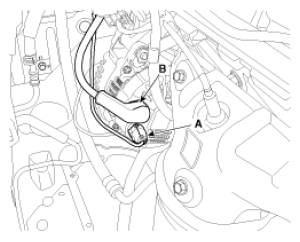

    Fig 1: Identifying Alternator Connector And Cable
    G09267388Courtesy of HYUNDAI MOTOR AMERICA
  4. To release the tension, turn the drive belt tensioner counterclockwise then remove the drive belt (A).
    Fig 2: Identifying Drive Belt
    G09267389Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the alternator (A).
    Fig 3: Identifying Alternator
    G09267390Courtesy of HYUNDAI MOTOR AMERICA
