Home >> Hyundai >> 2014 >> Santa Fe GLS, FWD >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle Assembly >> Front Hub Knuckle Tone Wheel >> Components and Components Location >> Components

Components and Components Location: Components

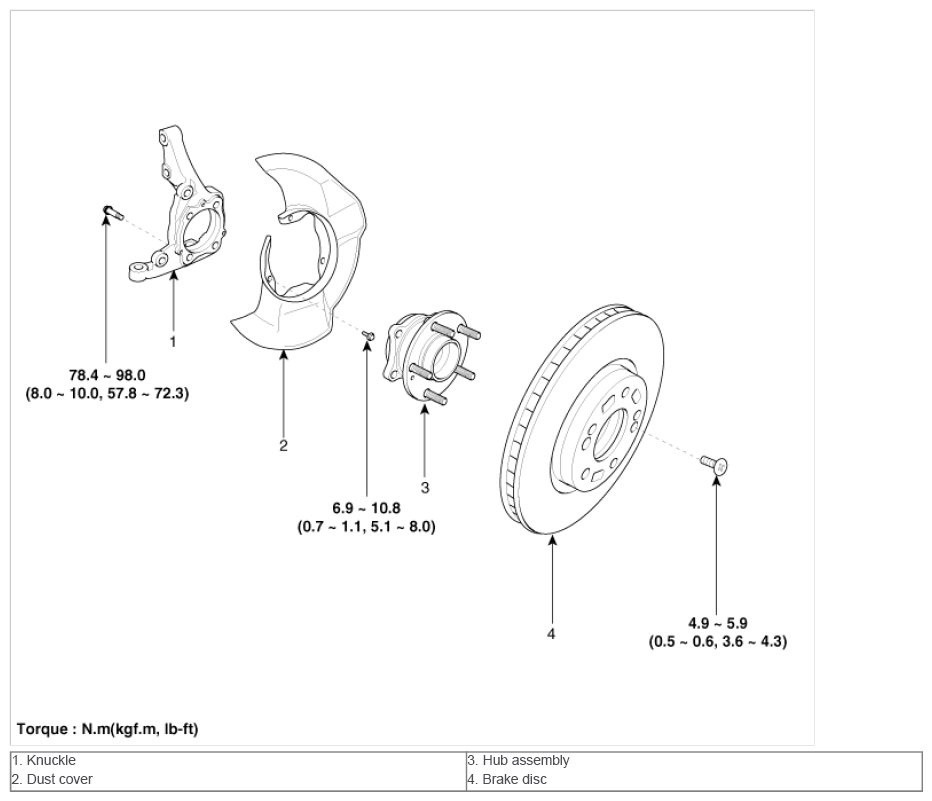

Fig 1: Front Axle Assembly Components With Torque Specifications

G09267744

Courtesy of HYUNDAI MOTOR AMERICA
