Home >> Hyundai >> 2014 >> Santa Fe GLS, FWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> Rear Wheel Speed Sensor >> Components and Components Location >> Components

Components and Components Location: Components

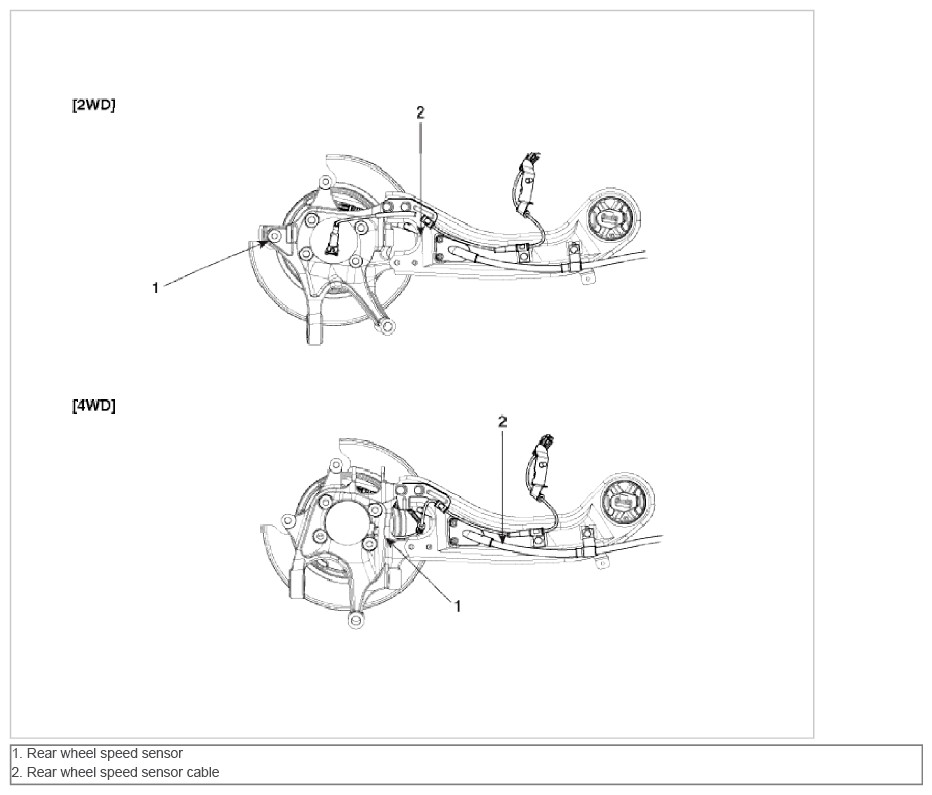

Fig 1: Identifying Rear Wheel Speed Sensor And Cable (2WD And 4WD)

G09264182

Courtesy of HYUNDAI MOTOR AMERICA
