Home >> Hyundai >> 2014 >> Santa Fe GLS, FWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> Front Wheel Speed Sensor >> Components and Components Location >> Components

Components and Components Location: Components

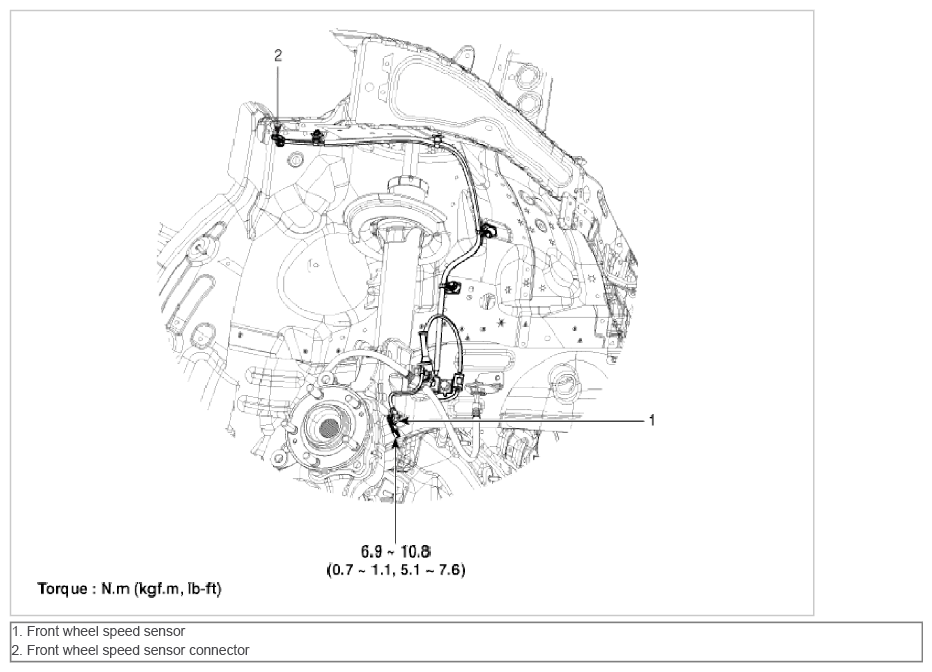

Fig 1: Front Wheel Speed Sensor And Connector With Torque Specification

G09264178

Courtesy of HYUNDAI MOTOR AMERICA
