Repair Procedures: Inspection

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to "CRASH PAD LOWER PANEL ")

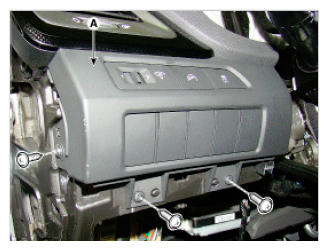

  3. Remove the crash pad side switch assembly (A) after loosening the screws.
    Fig 1: Identifying Crash Pad Side Switch Assembly
    G09264190Courtesy of HYUNDAI MOTOR AMERICA
  4. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
    Fig 2: Crash Pad Side Switch Assembly Continuity Reference Chart
    G09264191Courtesy of HYUNDAI MOTOR AMERICA
